If you love the outdoors and enjoy hosting friends and family, investing in pavilion blueprints can help you bring your dream outdoor retreat to life. A pavilion offers a comfortable, elegant, and functional space where you can relax, entertain, and add beauty to your property. With detailed pavilion drawings, a full pavilion construction guide, and precise pavilion plans, you’ll have everything you need to complete a project that enhances your home’s value and creates lasting memories.

Why Choose Pavilion Blueprints?

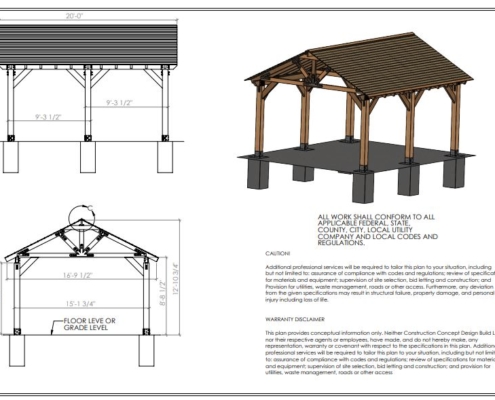

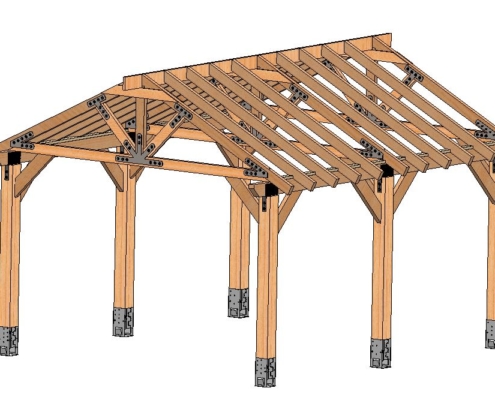

A well-designed pavilion not only elevates your backyard but also provides a timeless gathering space. These pavilion blueprints are specifically designed for a 16×20 wooden pavilion with 8’x8”x8’ posts and a 6/12 roof pitch. The pavilion drawings include detailed dimensions of every wooden member, ensuring that you can follow step-by-step instructions during the build.

Unlike generic diagrams, these DIY pavilion resources offer precise specifications that reduce guesswork. From the foundation plan to roof and elevation plans, these pavilion construction drawings give you the clarity needed for a smooth project.

What’s Included in the Pavilion Plans?

When you purchase these pavilion plans, you receive:

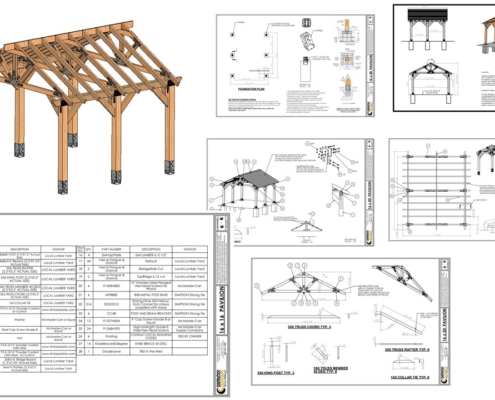

• Comprehensive Pavilion Blueprints: Printed on large 11×17 paper with six highly detailed pages.

• Complete Pavilion Drawings: Dimensioned layouts for every post, beam, and roof element.

• Material List: A full inventory of lumber and supplies, with exact sizes and dimensions. The list is also available in Excel format for easy cost estimation.

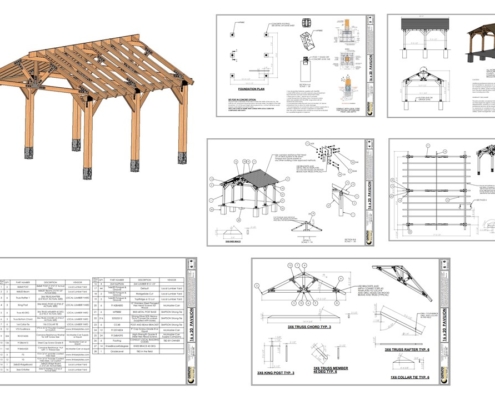

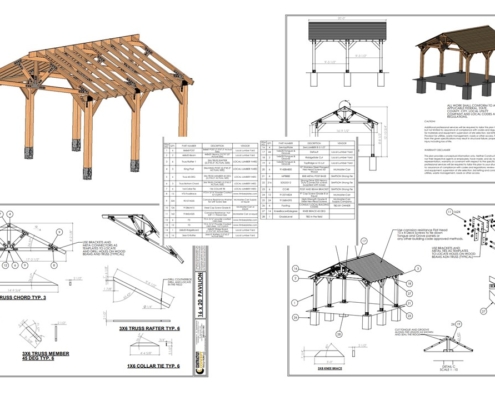

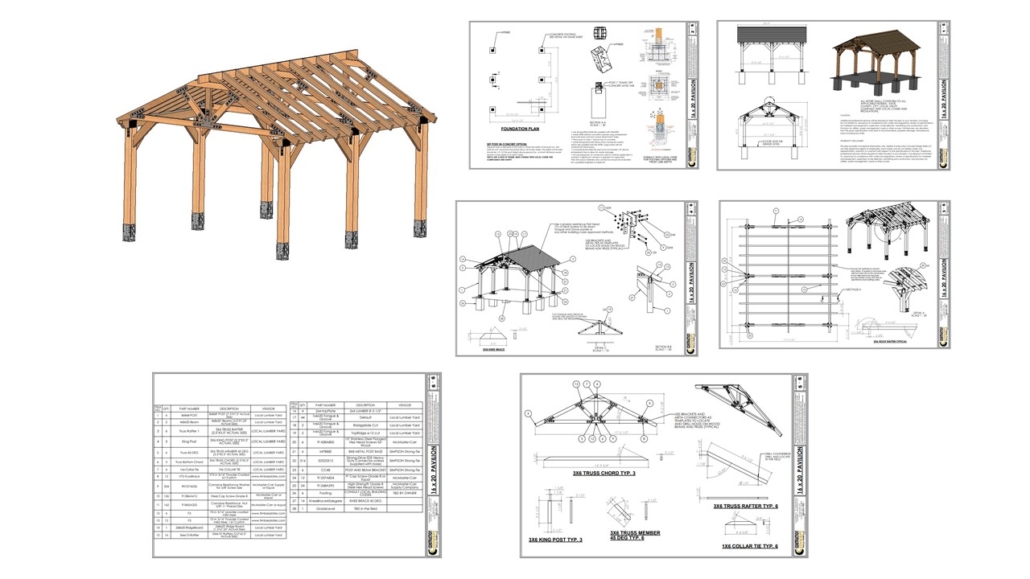

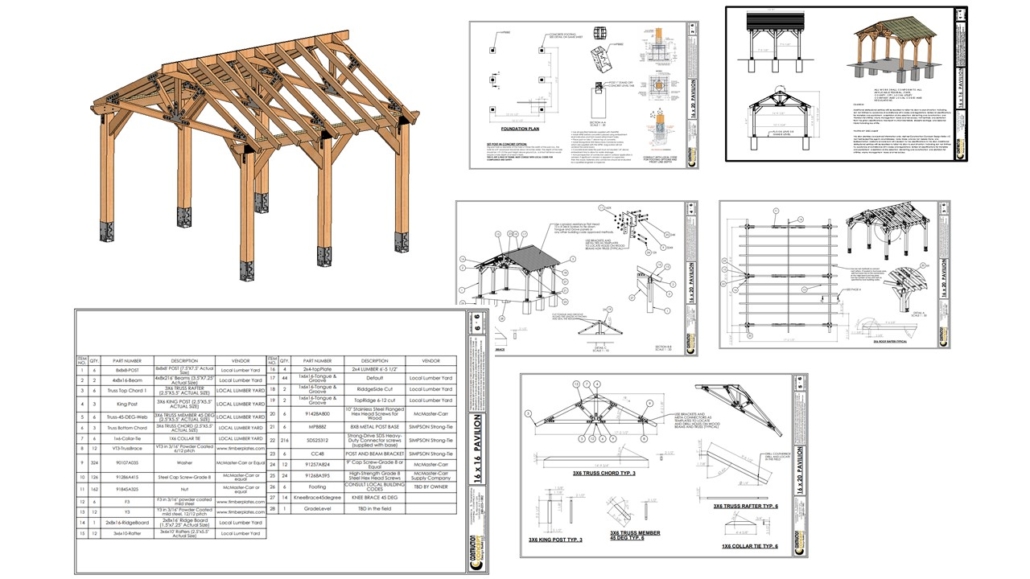

• Pavilion Construction Drawings: Foundation, floor, roof, elevation, and wall section details prepared using advanced engineering software.

These DIY pavilion resources combine accuracy and practicality, making them ideal for anyone who has construction experience and is ready to take on a rewarding project.

Designed by an Experienced Engineer and Builder

All pavilion blueprints are prepared by a licensed builder with over 32 years of engineering experience. With a Mechanical Engineering degree earned in 1988 and a Michigan builder’s license since 1989, the designer behind these pavilion drawings ensures that each page is precise, clear, and based on proven building practices.

These are not stamped architectural drawings, but detailed conceptual plans. Because building codes differ across cities, you’ll need to confirm compliance with your local requirements. However, the pavilion construction guide and pavilion construction drawings provide the foundation you need for a professional-grade project.

A Project for Skilled DIY Builders

This is not a light weekend job. The DIY pavilion project calls for technical skills, experience with construction, and in some cases, lifting equipment for heavy timber and beams. However, the results are worth it: a beautiful, lasting pavilion that will be part of your family’s home for decades.

If you’re passionate about tackling projects that showcase craftsmanship and engineering excellence, these pavilion plans and pavilion blueprints are your perfect starting point.

Why Invest in Pavilion Construction Drawings?

• Clarity and Confidence: Eliminate confusion with detailed pavilion drawings.

• Professional Results: Follow a structured pavilion construction guide designed by an experienced builder.

• Customizable: Use the DIY pavilion blueprints as a foundation for your unique vision.

• Value Added: A professionally designed pavilion can significantly increase the appeal and value of your property.

Get Your Pavilion Plans Today

Building a pavilion is a rewarding endeavor that blends engineering precision with craftsmanship. With the right pavilion blueprints, clear pavilion drawings, and a thorough pavilion construction guide, you can transform your backyard into an inviting outdoor living space.

Whether you’re an experienced builder or a highly skilled DIY enthusiast, these pavilion construction drawings will guide you through every step of the process. Order your pavilion plans today and take the first step toward building a pavilion that will stand proudly in your yard for years to come.
